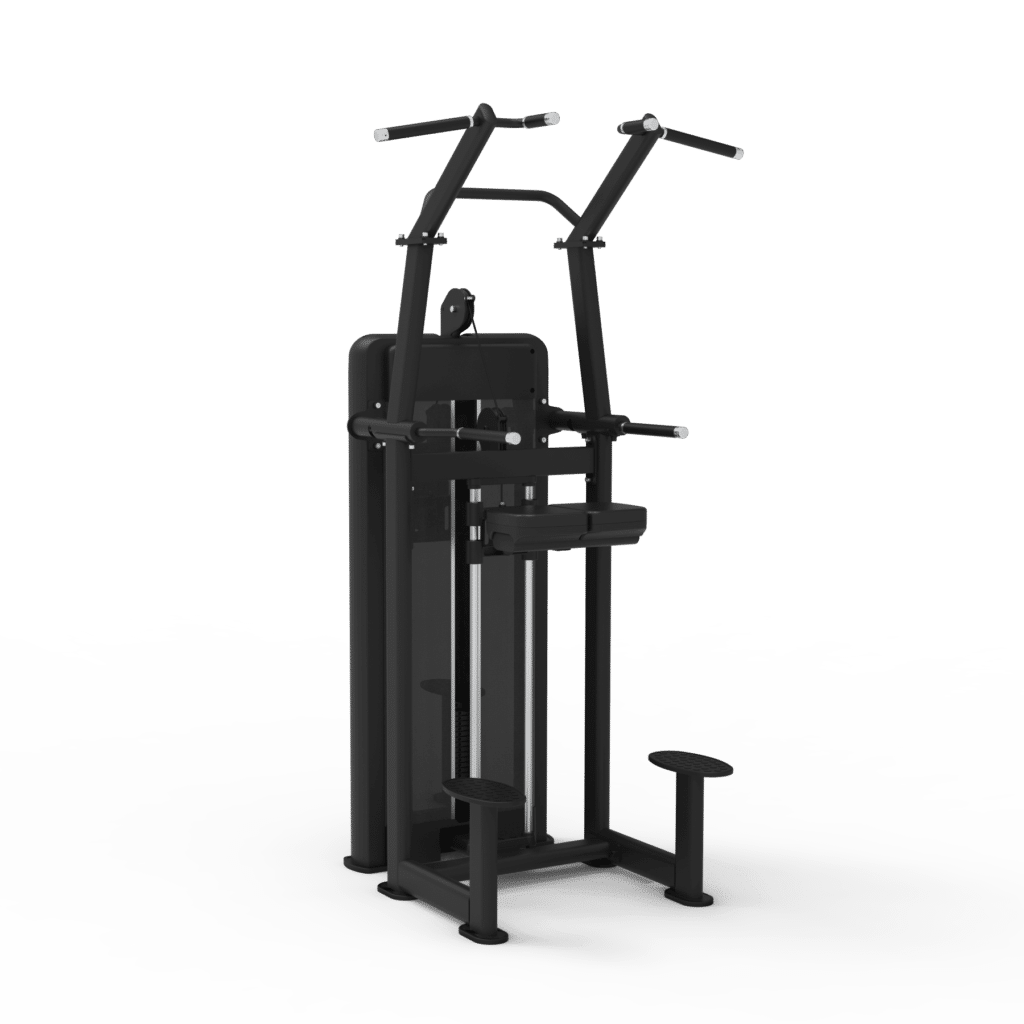

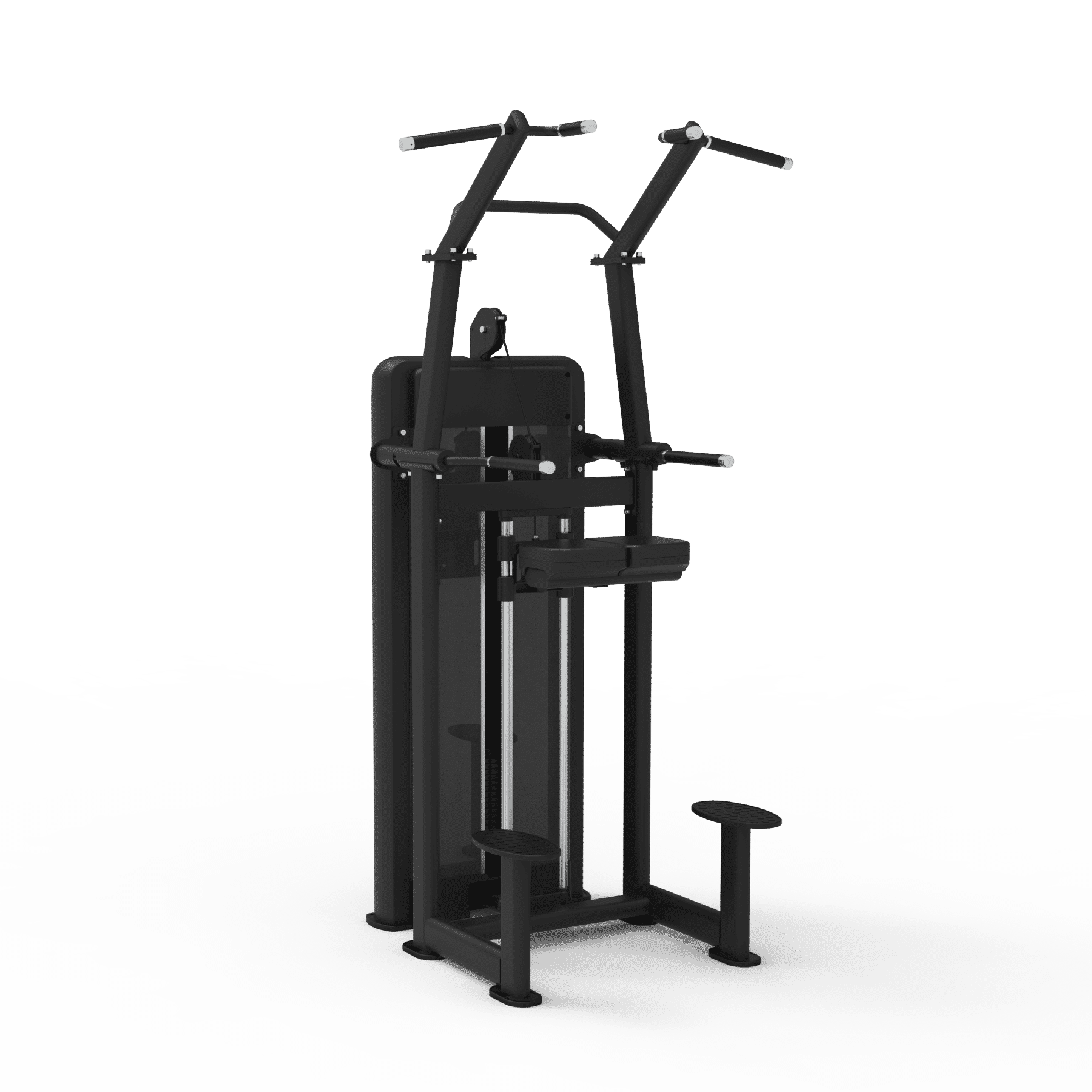

FZ Series 2 – Chin / Dip Assist

FZ Series 2 – Chin / Dip Assist

1. Robust Frame Construction: The main frame is constructed with 75 x 118 x 3.0 mm semi-elliptical pipe, the functional area with 50 x 120 x 3.0 mm flat oval pipe, the movement arm with 40 x 80 x 3.0 mm pipe, and joint pipe with 50 x 100 x 3.0 mm flat oval pipe. All pipes are made from high-quality Q235 steel.
2. Adjustable Seat: The seat is designed with an aluminum alloy arm parallelogram structure and a torsion spring adjustment for convenience and safety.
3. Premium Upholstery: Features high-density foam with “furniture grade” PU leather and an integral ABS guard cover for added durability and comfort.
4. Durable Pulleys and Bearings: POM material pulleys and CNC machined, customized high-quality bearings ensure the machine can withstand high-intensity and long-term use.
5. Organized Cable Management: Cables run inside the pipes for a neat and organized appearance.
6. Eco-Friendly Shroud: A full shroud made from 4mm thick ABS virgin material ensures durability and is eco-friendly.
7. High-Strength Cables: Equipped with Japanese-made cable, capable of withstanding up to 1400 kg of strength.
This combination of high-quality materials and thoughtful design makes the NC Fitness FZ Series pin load machines a top choice for any fitness facility looking to offer the best in exercise equipment.
