Name: APXMAX 7 Series - Seated Leg Curl Pin Load
SKU: NC7325
Availability: OutOfStock

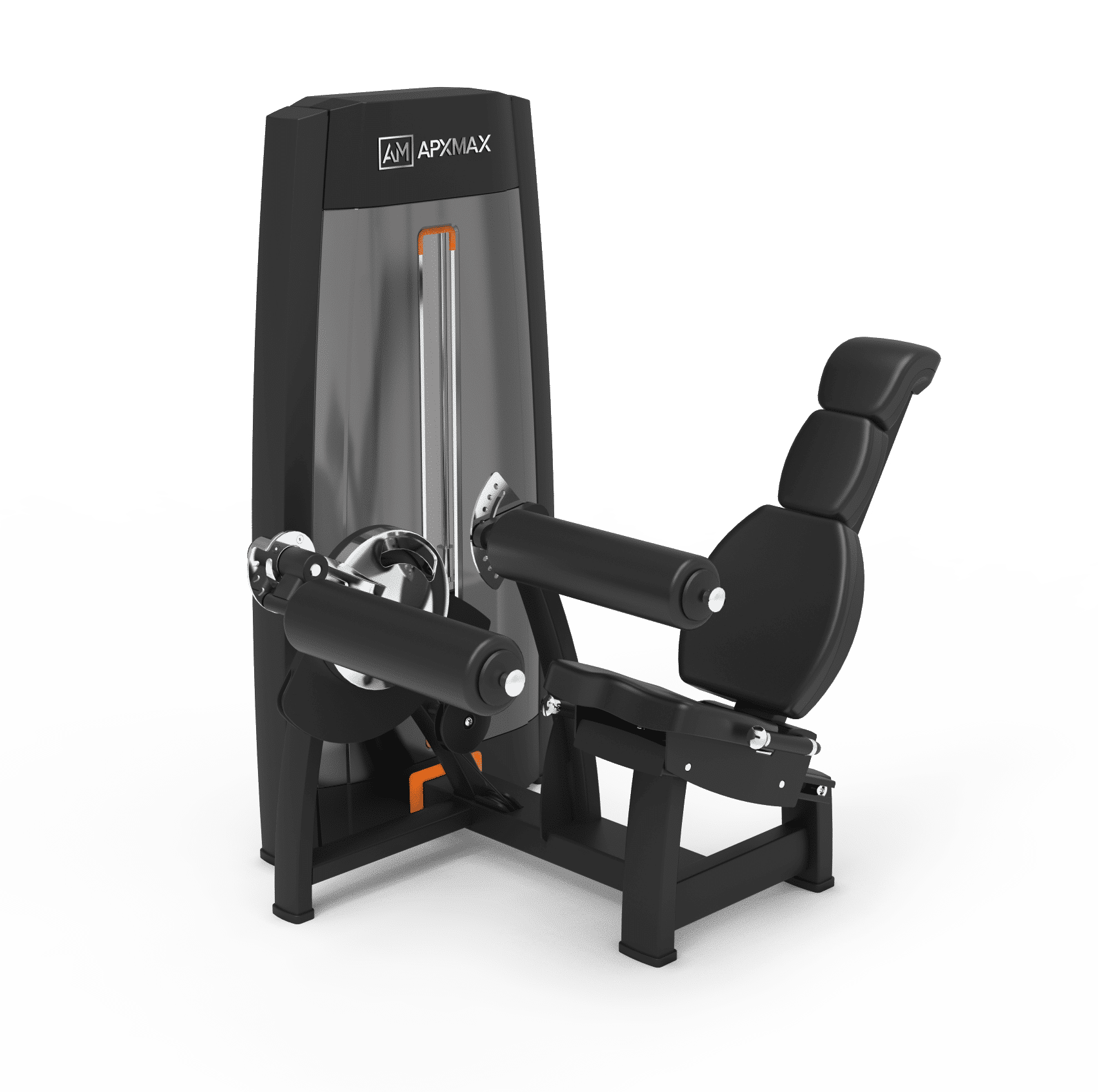

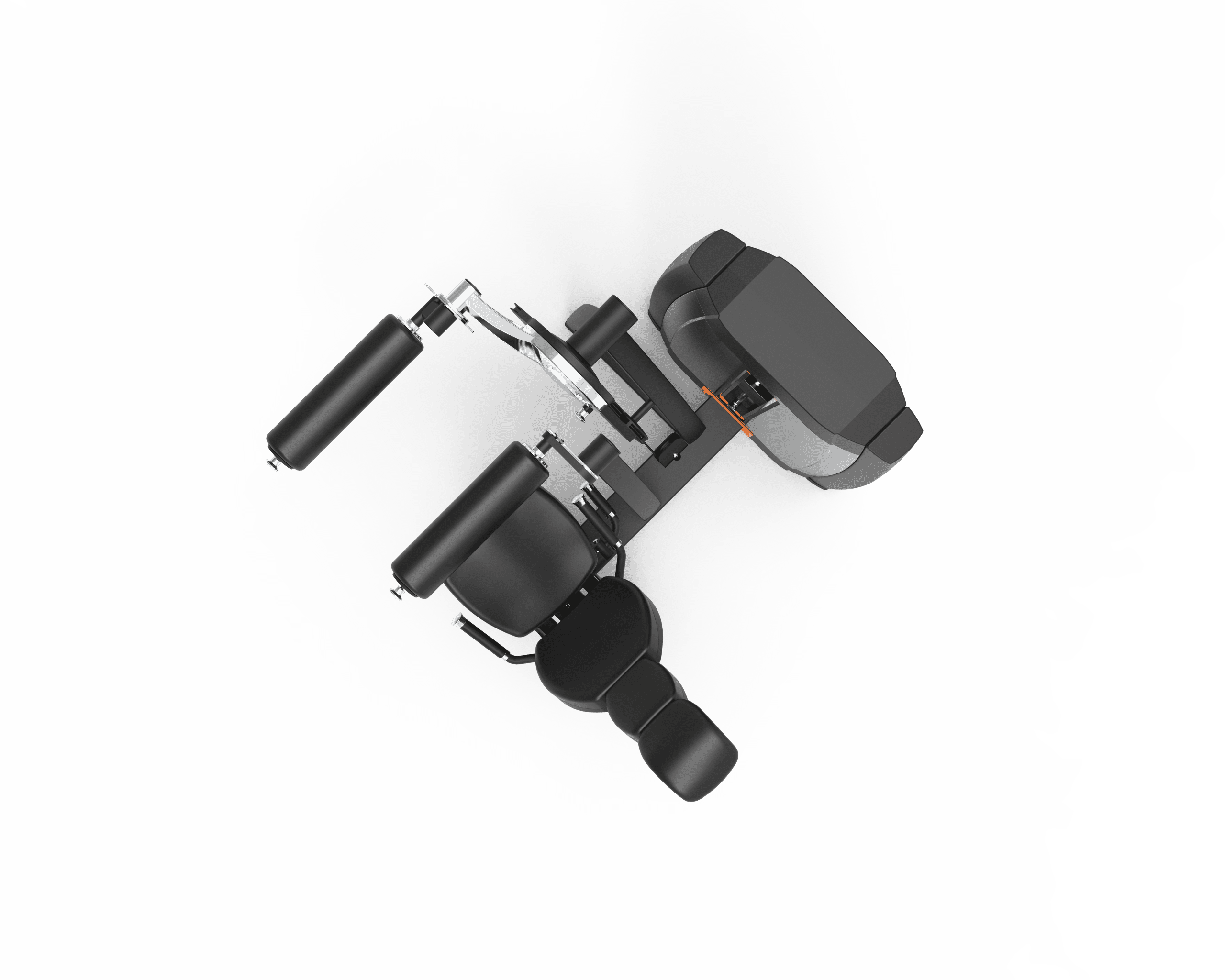

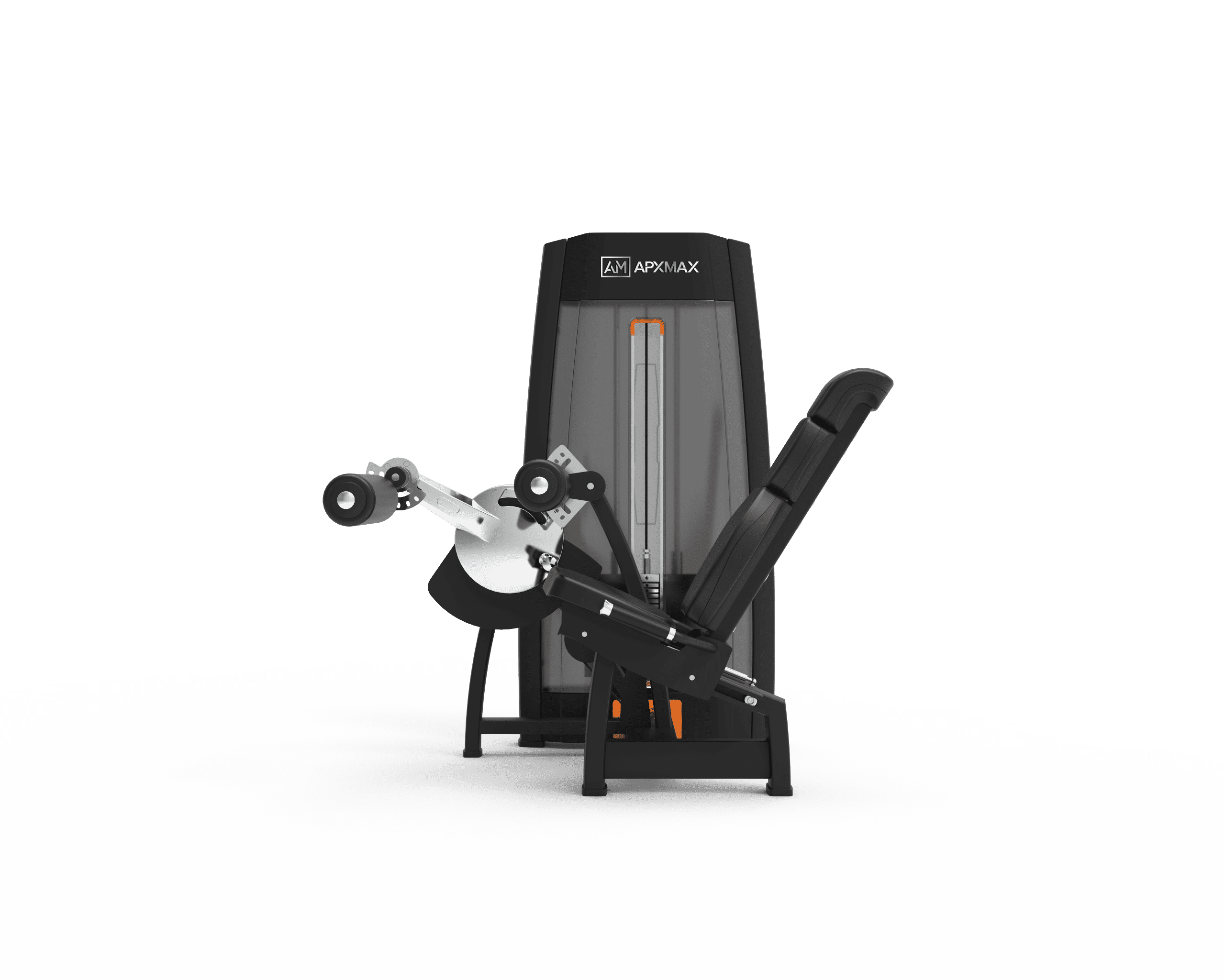

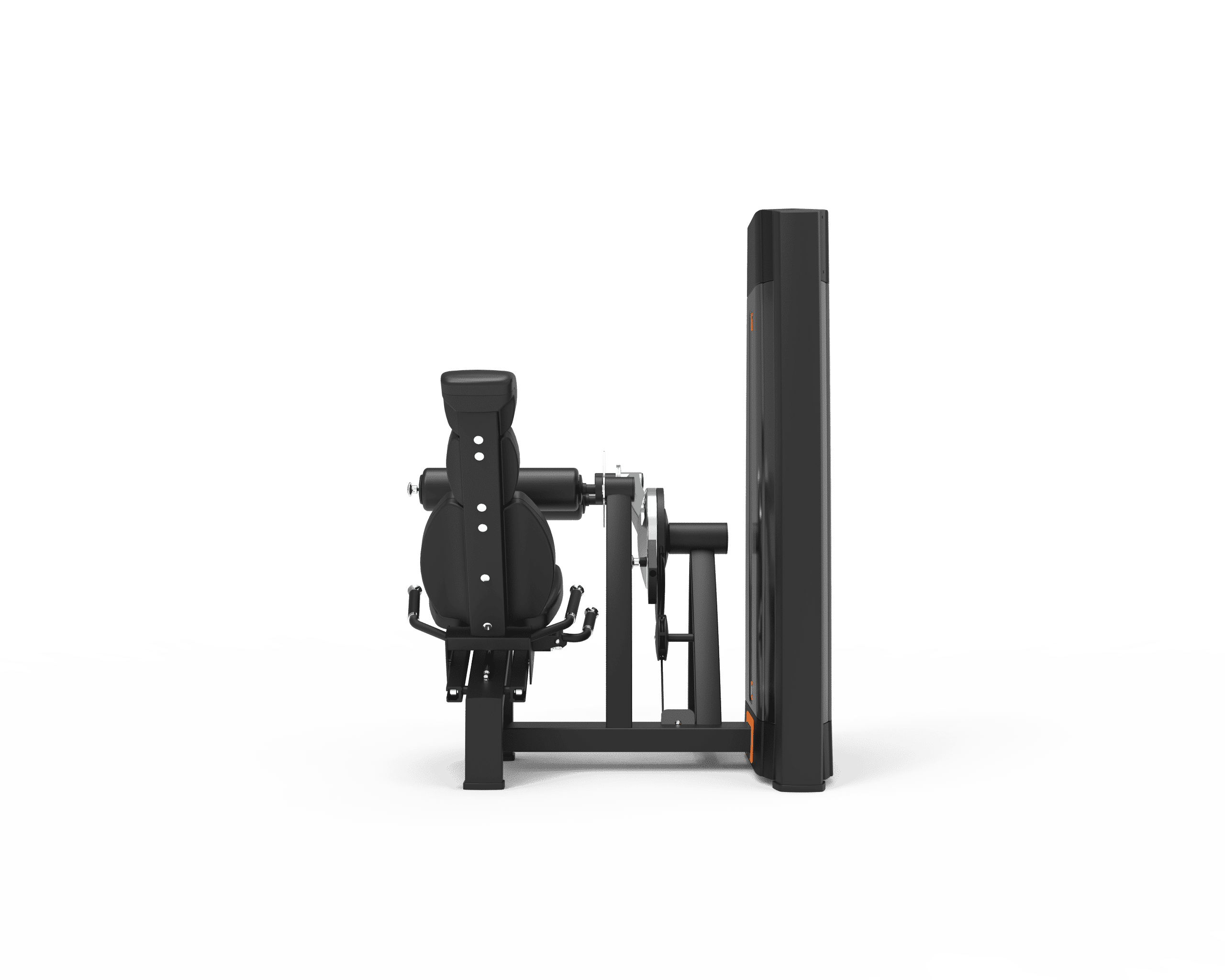

APXMAX 7 Series – Seated Leg Curl Pin Load

$5,800.00

SKU: NC7325

Join the waitlist to be emailed when this product becomes available

By ticking this box you agree to an account being created using the given email address and to receive waitlist communications by email

Enter your email address to join the waitlist for this product

Out of stock

Finance Available

APXMAX 7 Series – Seated Leg Curl Pin Load

APXMAX Series 7 – Commercial Grade Pin-Loaded Machines

The APXMAX Series 7 Commercial Grade Pin-Loaded Machines are designed to meet the demands of busy, high-traffic fitness facilities. Built with premium materials and precision engineering, these machines deliver smooth, consistent resistance for effective workouts at every fitness level. Featuring ergonomic designs, easy-to-use adjustments, and robust construction, the APXMAX Series 7 ensures superior performance, reliability, and user comfort, making it the ideal choice for professional gyms.

Built for Commercial Performance

Heavy-Duty Frame: Semi-elliptical steel tubing for maximum stability (75×130×3.0 mm main frame).
Precision Engineering: Functional area (58×101×3.0 mm), movement arms (48×76×3.0 mm), and joint pipes (70×140×3.0 mm rectangular pipe) constructed from Q235-grade steel.
Smooth Movement: Alloy steel slide bar ensures seamless operation, even under heavy loads.

Premium Features for Safety & Performance

Durable Finishes: Anodized aluminum alloy end caps for a premium look and long-lasting protection.
Comfortable Upholstery: High-density foam wrapped in furniture-grade PU leather.
Protective Guard Covers: Integrated ABS panels enhance safety and longevity.
Precision Pulley System: CNC-machined POM pulleys with custom bearings for high-intensity, long-term use.
Eco-Friendly Shroud: Full 4 mm ABS virgin material for a tough yet environmentally responsible finish.
Heavy-Duty Cable: Coated wire (6×19+1×75) rated to withstand up to 1,400 kg.

Specifications

Net Weight: 219 kg
Installation Size: 1650 × 1070 × 1610 mm
Weight Stack: 120 kg

Why Choose APXMAX Series 7?

Combining commercial-grade durability, ergonomic design, and smooth, consistent performance, the APXMAX Series 7 is engineered to handle the demands of high-volume training environments. With quick adjustments, reliable operation, and premium materials, it’s the perfect solution for gyms seeking long-lasting, professional-quality equipment.

Warranty

Pin and Plate Load Machines

Warranty Period :

Structural Steel Framework	Lifetime
Rotary Bearings, Weight Stacks, Pulleys, Guide rods, Structural moving parts	2 years
Cable, Linear Bearings, Springs	1 year
Upholstery, handgrips, all other items not listed	6 Months

Do Not:

Use Outdoors
Drop the weight stacks down during a rep, this can cause damage
Use on uneven surfaces

Exclusions:

Normal Wear and Tear
damage from incorrect installation

Maintenance:

Any damaged components should be replaced by a service technician
Service the machine by a qualified service technician
Regularly check for signs of wear

***We highly recommend this machine to be installed by a professional, incorrect installation may result in the warranty becoming void***
