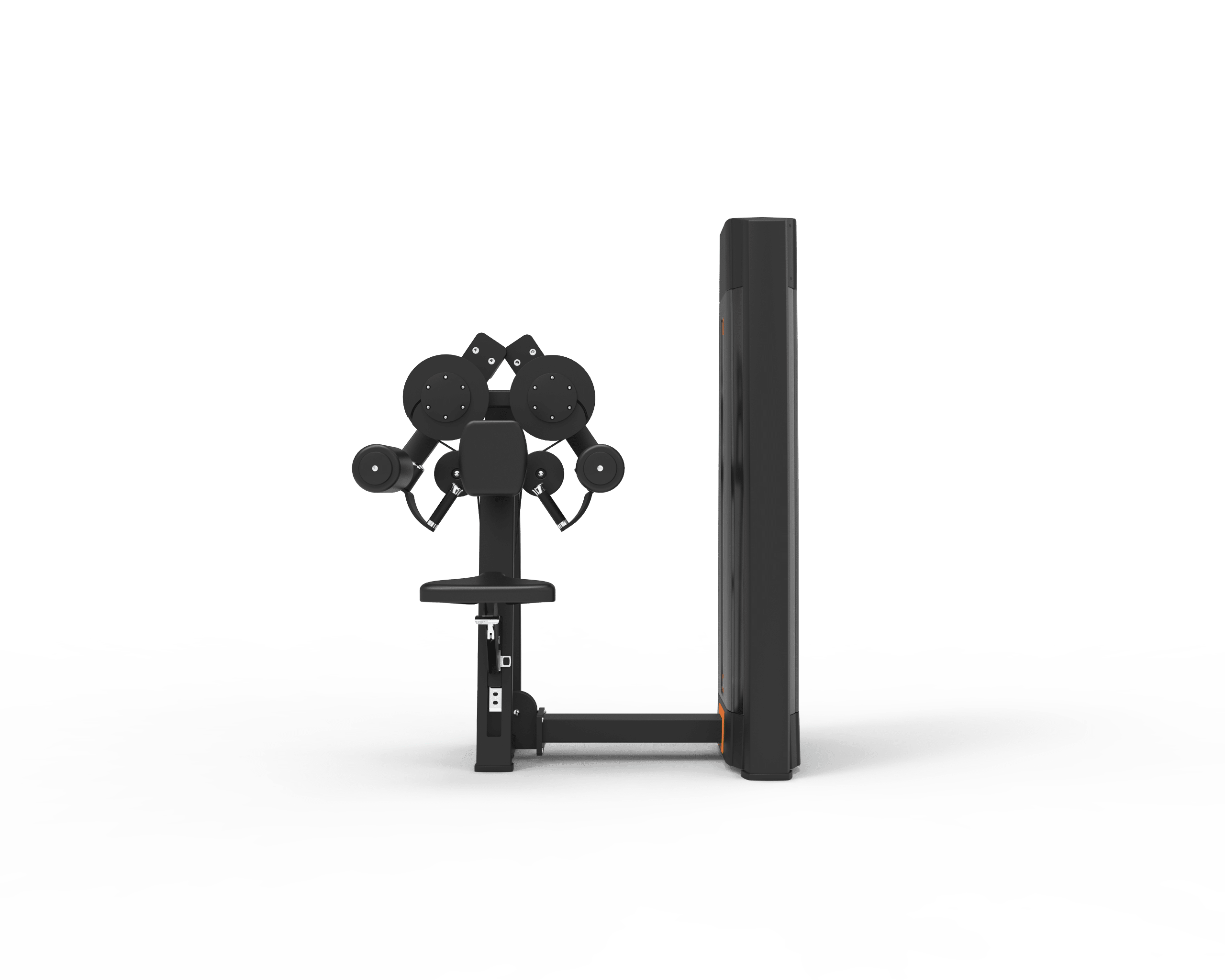

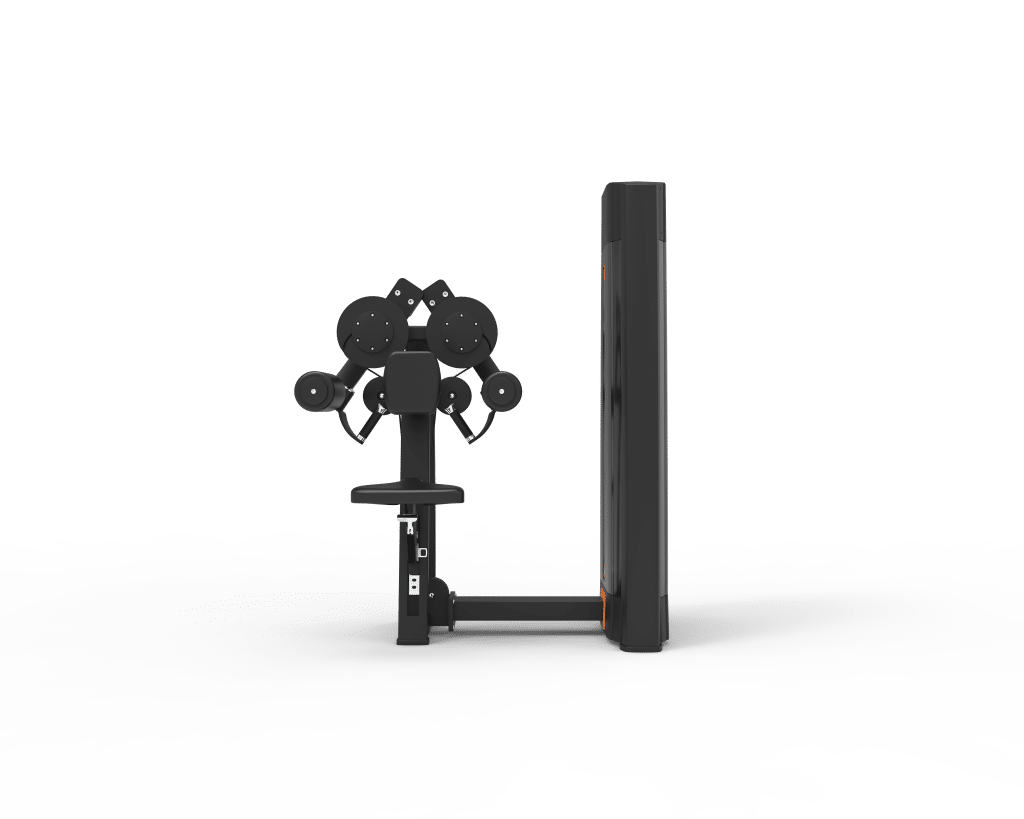

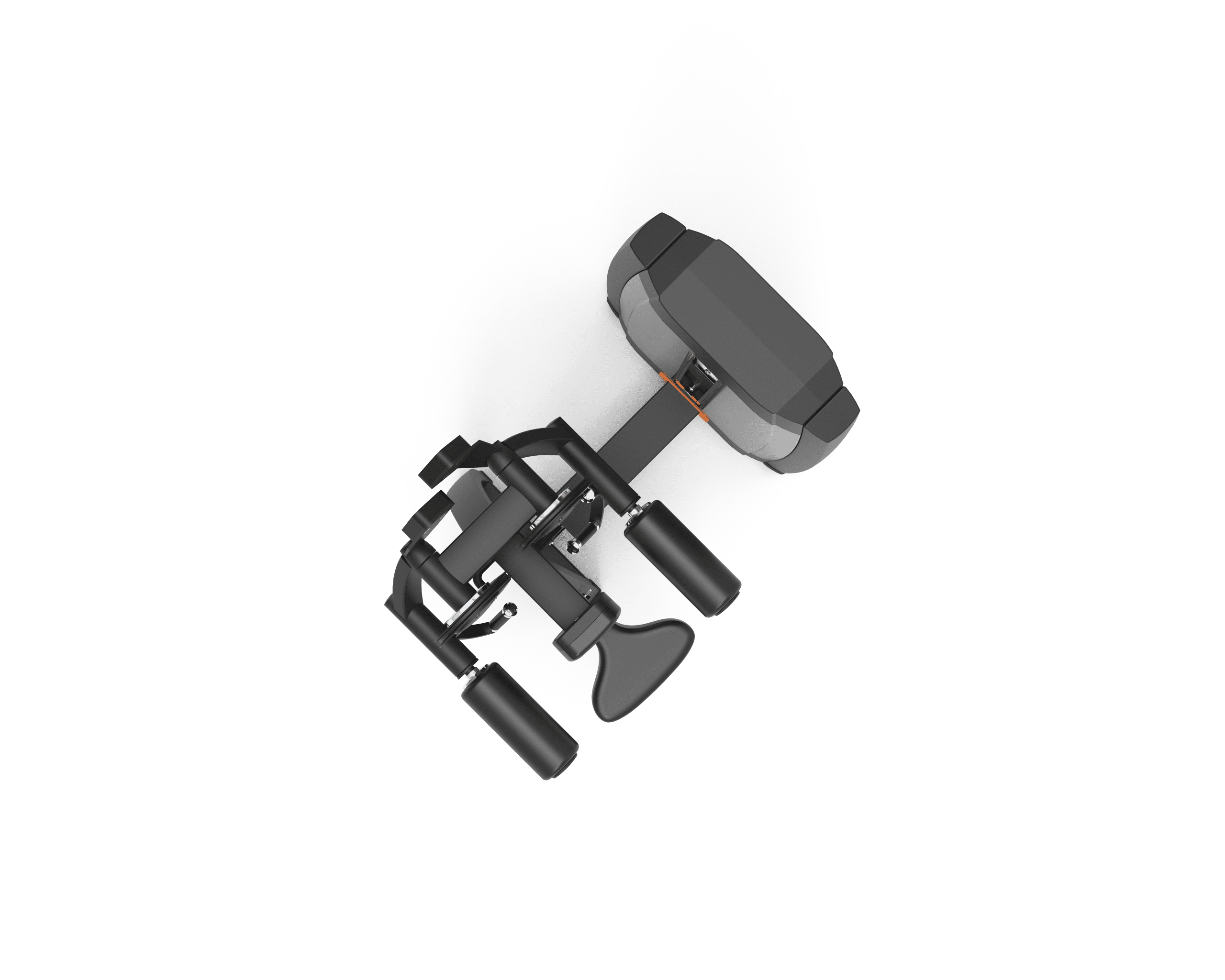

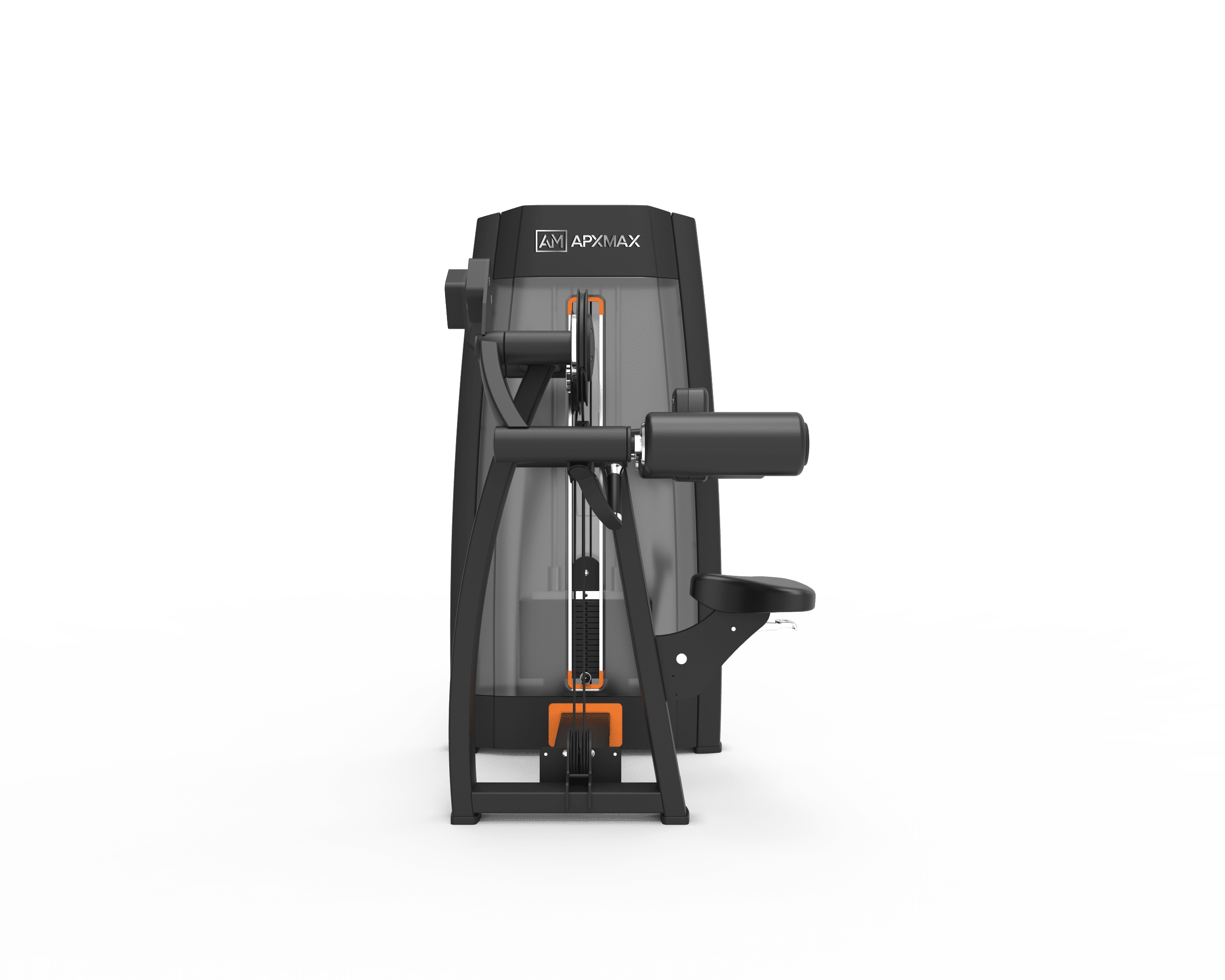

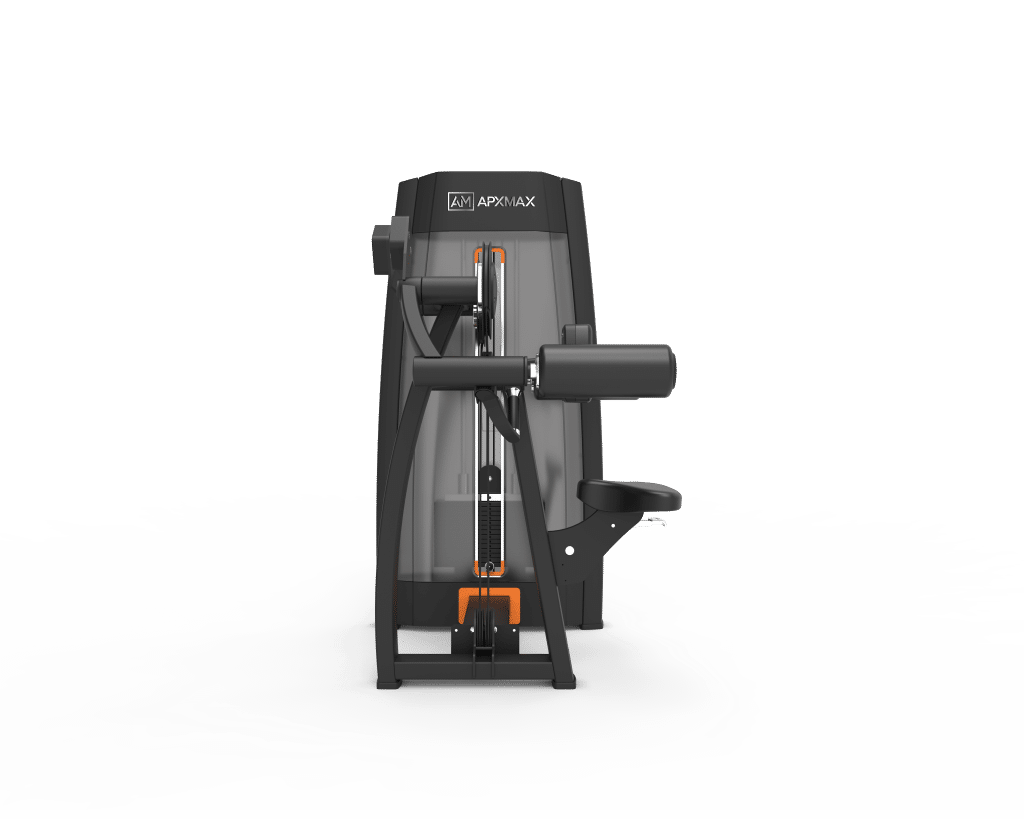

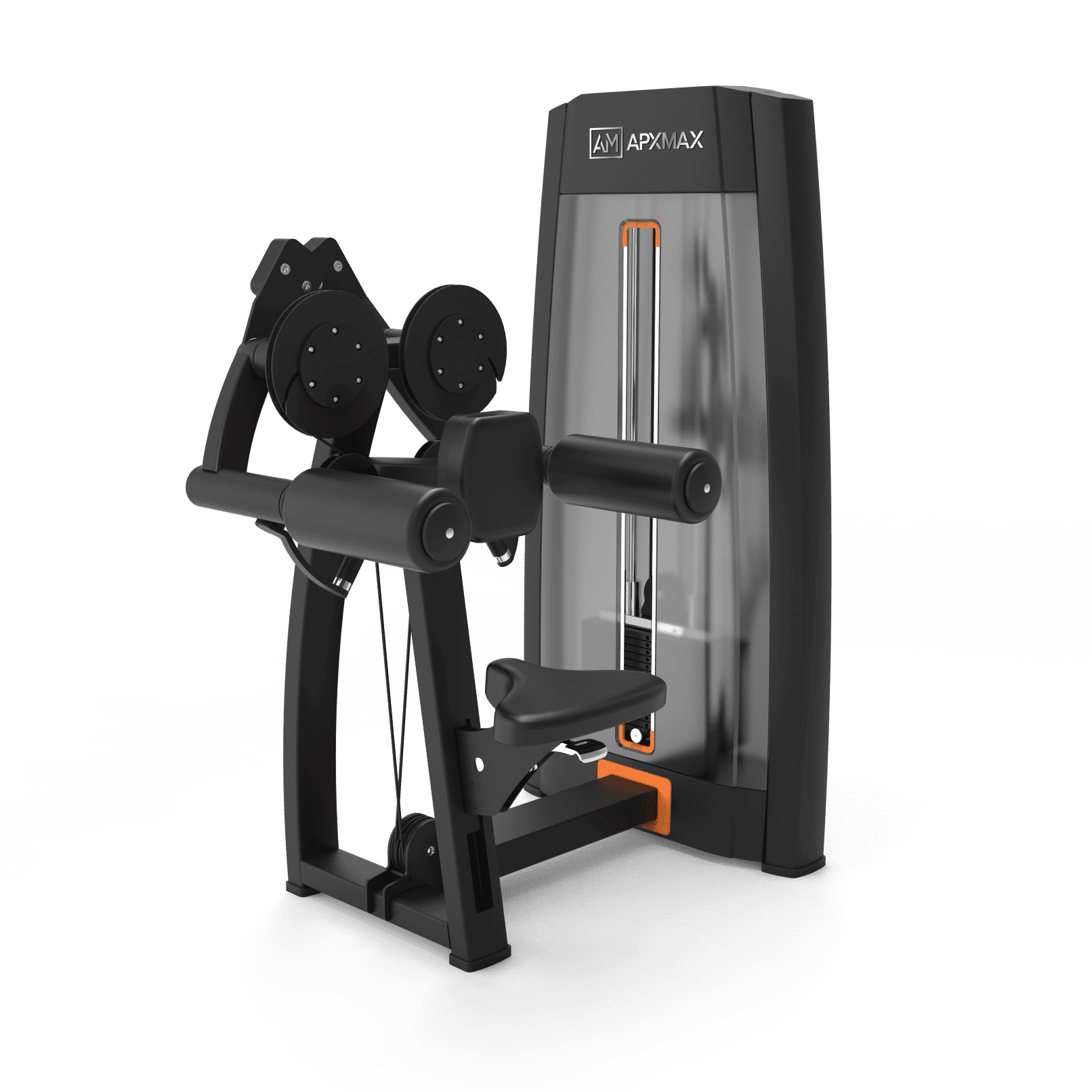

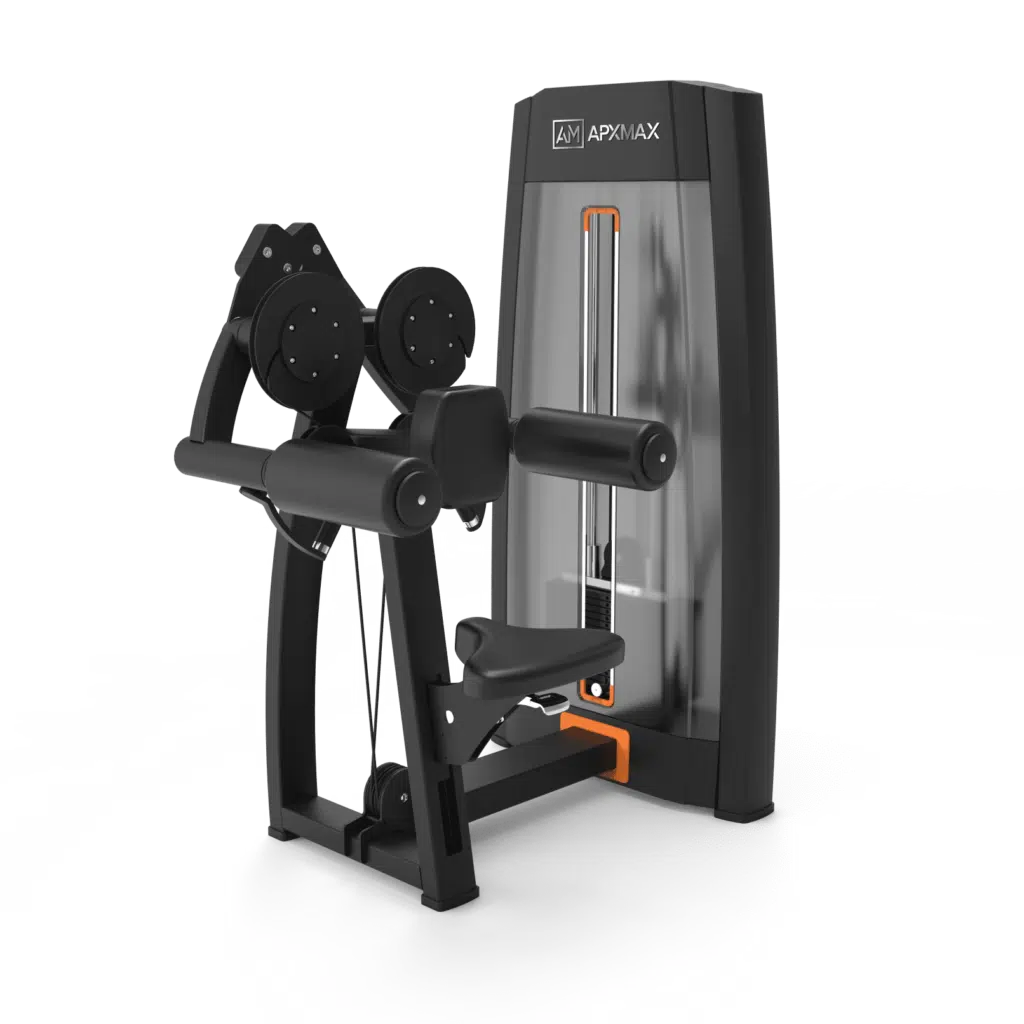

APXMAX 7 Series – Lateral Raise Pin Load
The APXMAX 7 Series Commercial Grade Pin Load Machines provide outstanding durability and precision, making them ideal for high-traffic fitness facilities. These machines offer smooth, consistent resistance, ensuring effective workouts for all users. With ergonomic designs, easy-to-use adjustments, and robust construction, they deliver superior performance, reliability, and user comfort, making them a top choice for commercial gym environments.
Main frame adopts 75*130*3.0 semi-elliptic pipe, Functional area adopts 58*101*3.0 semi-elliptic pipe, movement arms adopt 48*76*3.0 semi-elliptic pipe, joint pipe adopts 70*140*3.0 rectangular pipe. All pipes are Q235 qualified.
Alloy steel slide bar to ensure smooth movement.
Anodised aluminum alloy end cap, durable and looks nice.
High density foam upholstery, “furniture grade” PU leather ,, and integral ABS guard cover.
POM material pulley , CNC processing, customised high-quality bearing to withstand High-intensity and long-term use
Full shroud, 4mm thickness ABS virgin material, durable and eco friendly
Heavy Duty wire cable, with 6*19+1*75 coated wire which can withstand 1400kg strength
Installation size:1250*890*1610mm
Weight stacks:120kg
Warranty
Pin and Plate Load Machines
Warranty Period :
Structural Steel Framework |
Lifetime |
Rotary Bearings, Weight Stacks, Pulleys, Guide rods, Structural moving parts |
2 years |
Cable, Linear Bearings, Springs |
1 year |
Upholstery, handgrips, all other items not listed |
6 Months |
Do Not:
- Use Outdoors
- Drop the weight stacks down during a rep, this can cause damage
- Use on uneven surfaces
Exclusions:
- Normal Wear and Tear
- damage from incorrect installation
Maintenance:
- Any damaged components should be replaced by a service technician
- Service the machine by a qualified service technician
- Regularly check for signs of wear
***We highly recommend this machine to be installed by a professional, incorrect installation may result in the warranty becoming void***
